Series 700

Description
Images
Diagrams

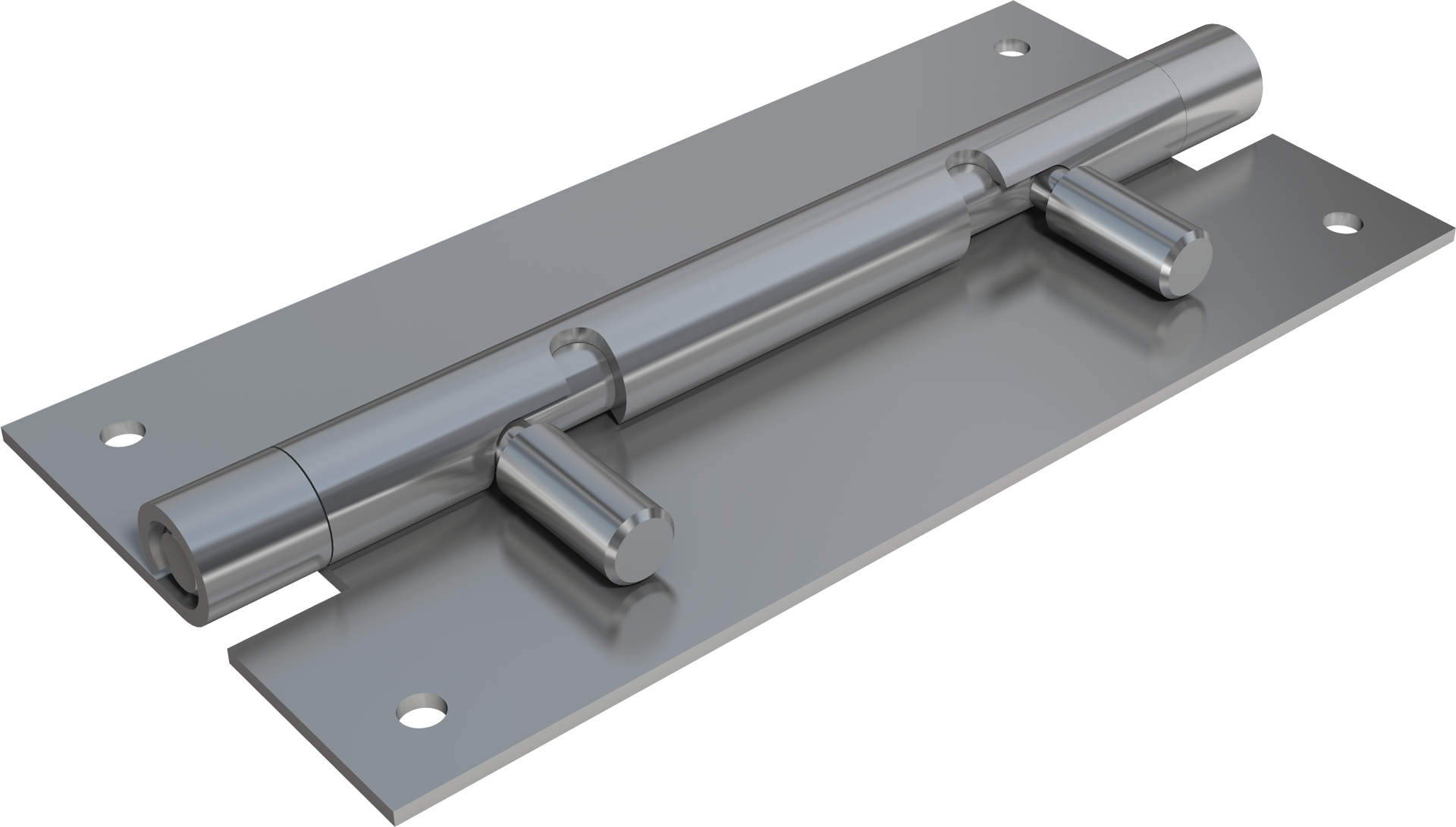

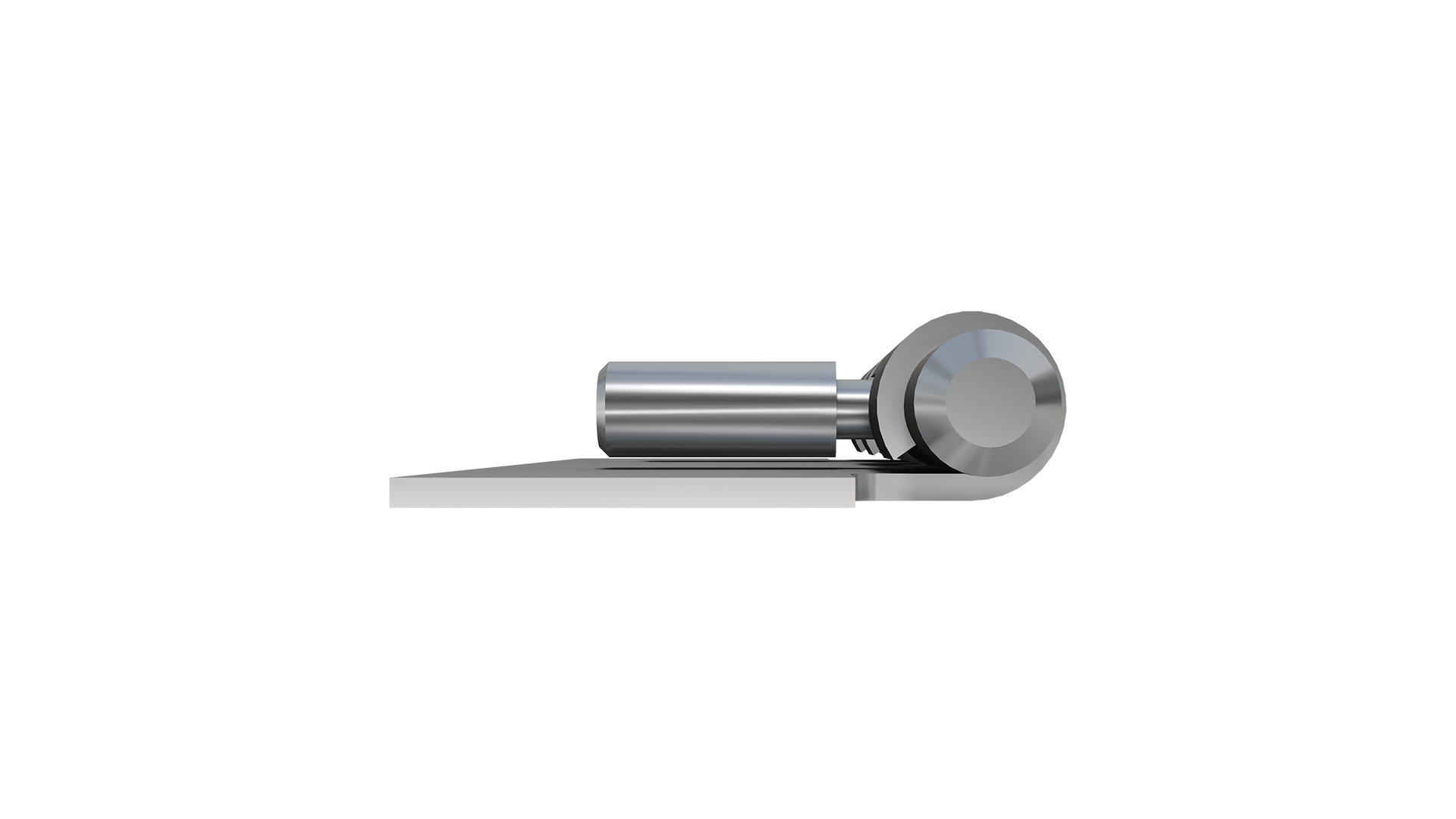

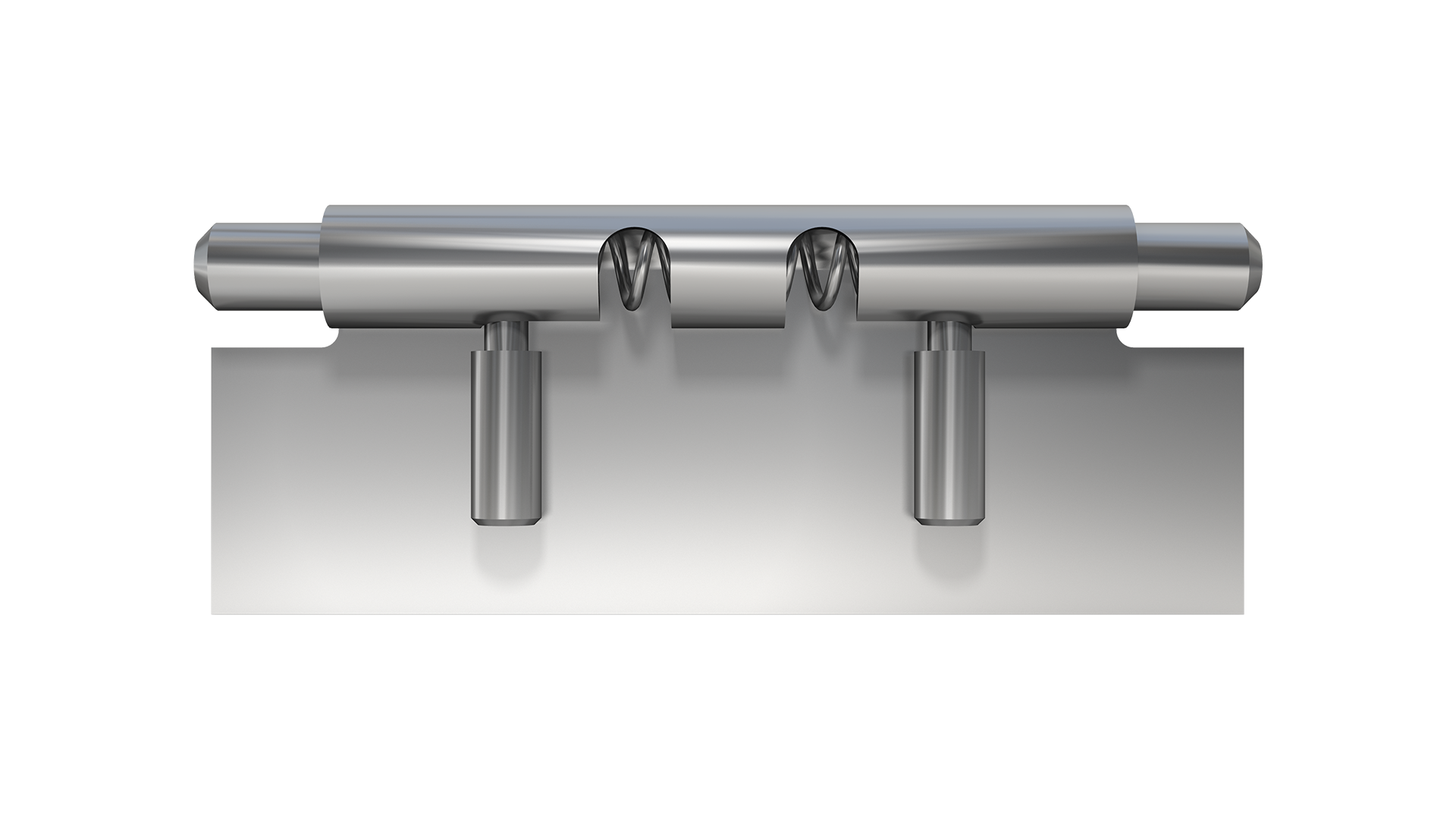

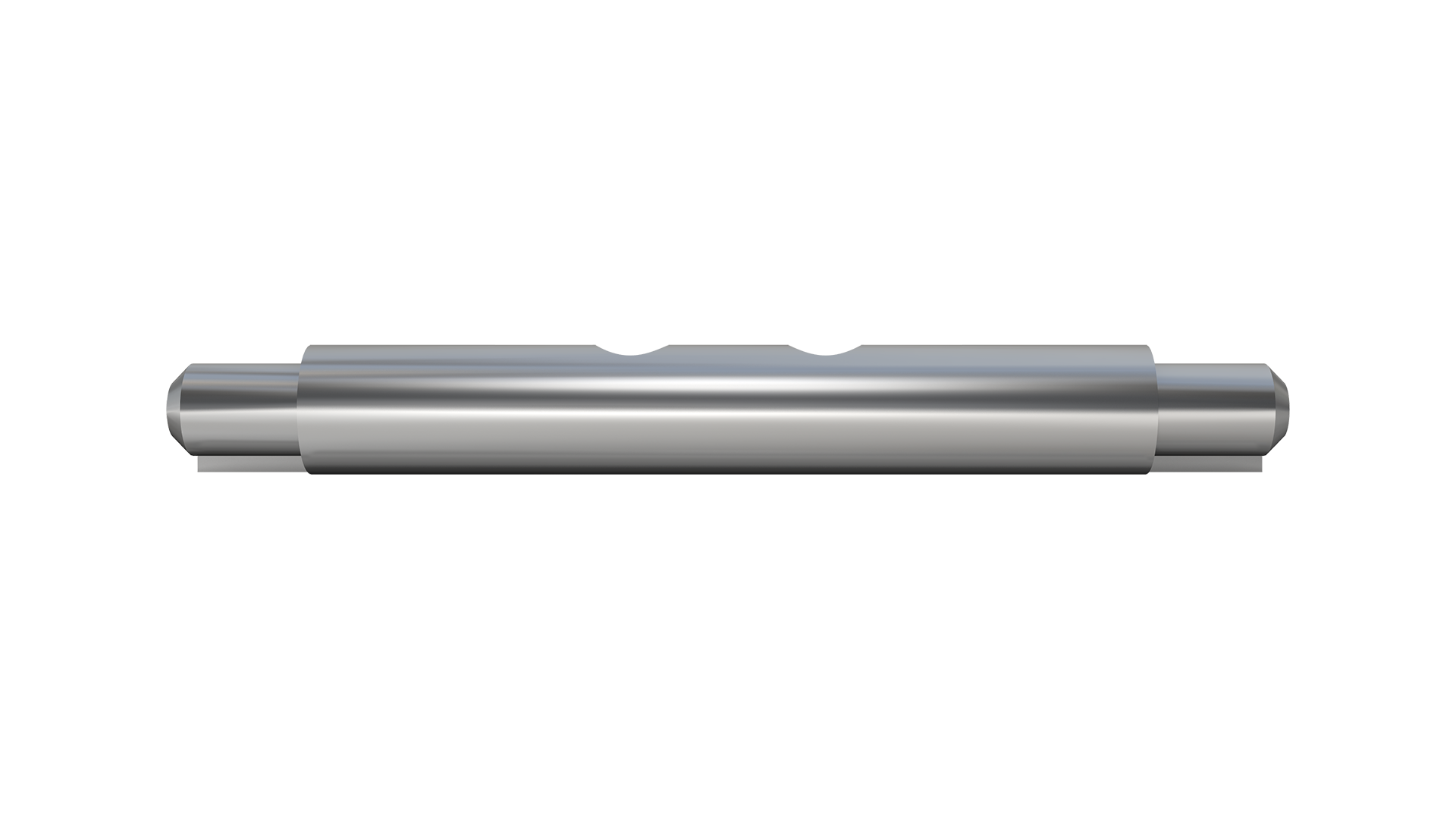

700_4ASSY_000

Combining a hinge and a latch in a standard piece of hardware.

The 700 Series Spring Release Hinge has a pair of spring-loaded handles which pull toward the center to release the body or door from the keeper. Installation is simple and inexpensive using screws, rivets or by welding.

All styles are manufactured to close tolerances. End play and side play are held to a minimum, ensuring a precision fit and smooth operation.

This latch is ideally suited for applications including aircraft compartments, computer equipment, shelving & storage units, and medical equipment.

700-Diagram

Series 700

BODY
LLength3"4"6"Special
WWidth1"1"1"
TThickness.050.050.050
DASH #-3-4-6-7
PIN
PPin Diameter.250Special
WMetal Thickness0.50-
DASH #-1-7
HOLES
NoneStandard (2 Holes)Special
DASH #-0-1-7
MATERIAL
AluminumSteelStainless
DASH #-1-2-3
MODEL
MaleFemale (Keeper)Complete Assembly
-1-2-A
FINISH
Most commercial finishes are available including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum.

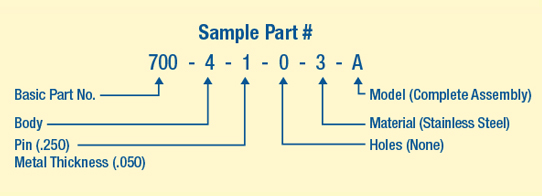

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!


Contact us today to find out how Paneloc products can help you!
