Slam Latches

This rugged slam latch is ideal for applications that require a quick and effortless locking mechanism, such as truck and trailer doors, drawers and tailgates, as well as medical and farm equipment.

To engage simply “slam” the door shut. The spring-loaded pin is square with an angled edge that smoothly retracts as it engages with the keeper and then extends back into place in a locked position. To release, grip the handle and pull back.

Available in 3 sizes: 7/16”,  3/8” and 1/2” pins.

Special forms, offsets, hole sizes or welding projections are available to your specifications.

*Designates dimensions can be altered to meet your specifications.

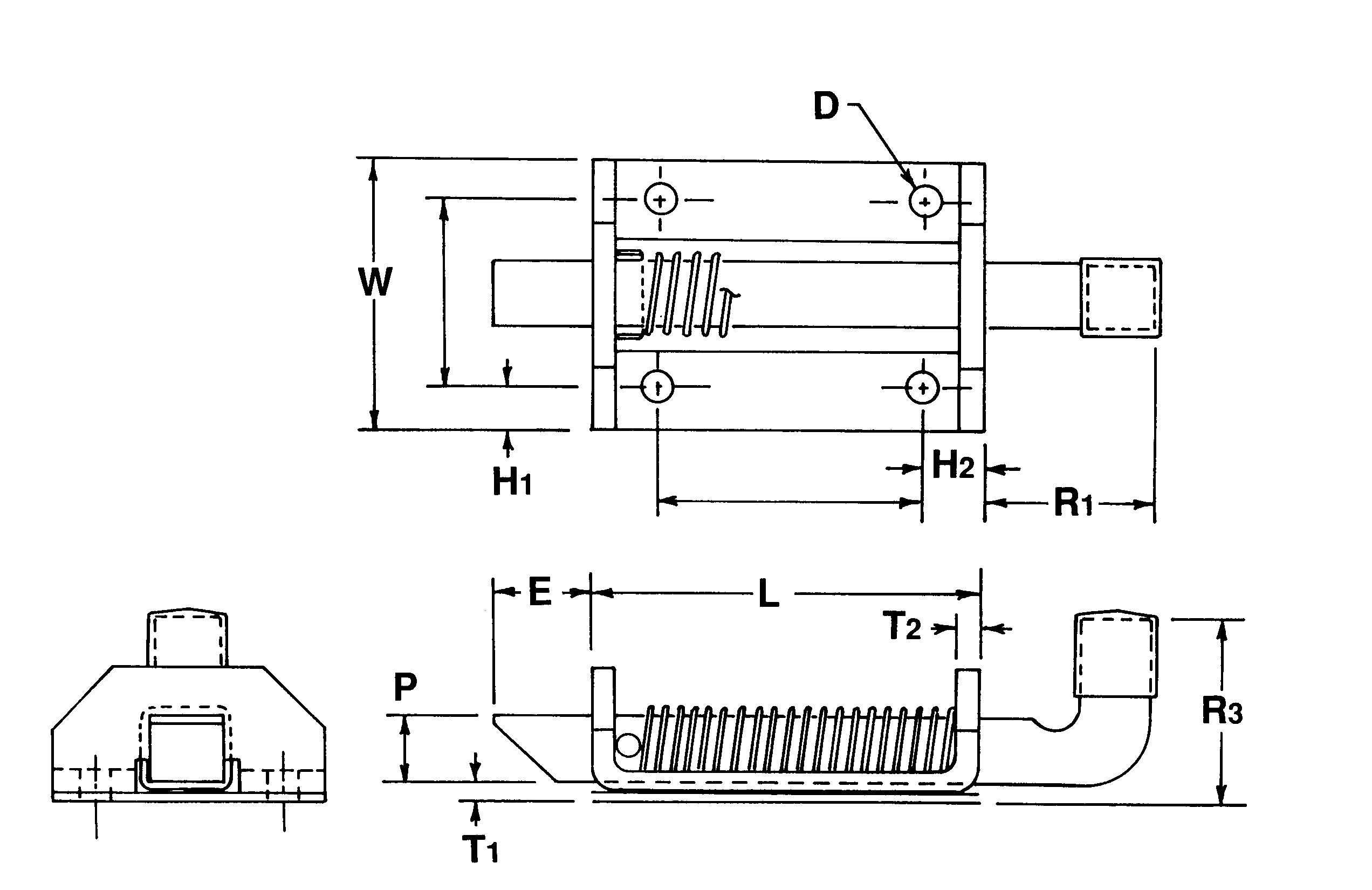

slam-latch-featured-image
SLAM LATCH PART NUMBERS
*Designated dimensions that can be altered to meet your specifications
PIN
P Pin Size
.375 .437 .437 .500 .500
* E Extension
.562 .750 .750 .750 .750
R1 Handle Length
.812 1.000 1.00 1.250 1.25
R3 Handle Extension
1.000 1.250 1.25 1.375 1.38
BODY
L Length
1.500 2.000 2.00 2.875 2.875
* W Width
1.250 1.625 2.19 2.000 2.66
T1 Thickness
.090 .125 .125 .190 .190
T2 Thickness
.090 .125 .125 .190 .187
* H1 Hole Location
.187 .250 .250 .312 .300
* H2 Hole Location
.375 .375 .38 .468 .47
H3 Hole Location
.750 1.250 1.250 1.930 1.937
H4 Hole Location
.875 1.125 1.687 1.375 2.060
* D Diameter
.171 .203 .205 .265 .265
MATERIAL

C = Stainless      S = Steel

FINISH

Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel.

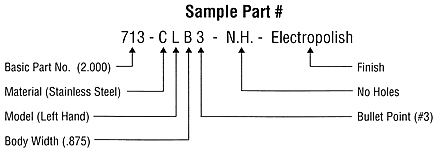

ORDERING INFORMATION

3223
