Butt Hinges

Butt Hinges

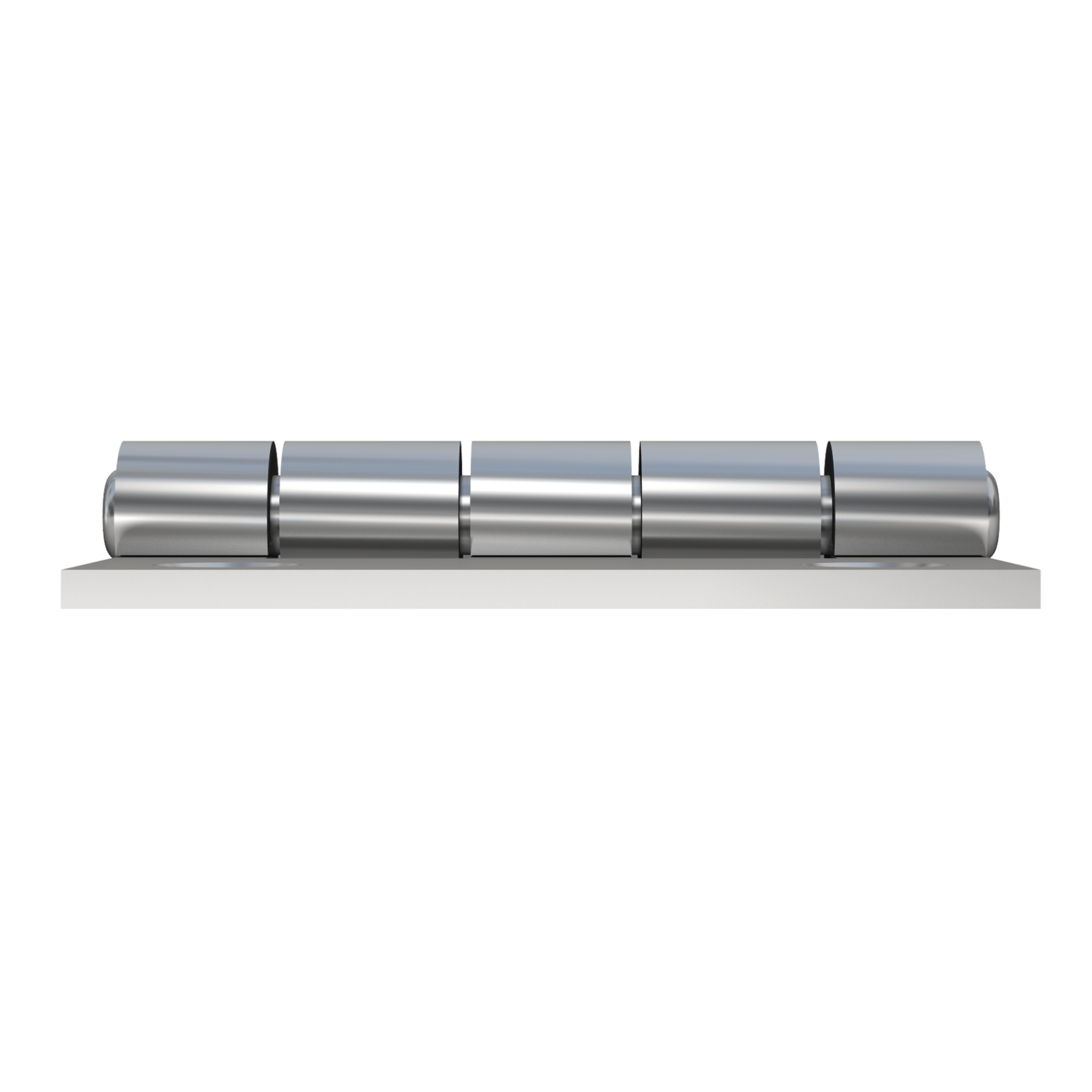

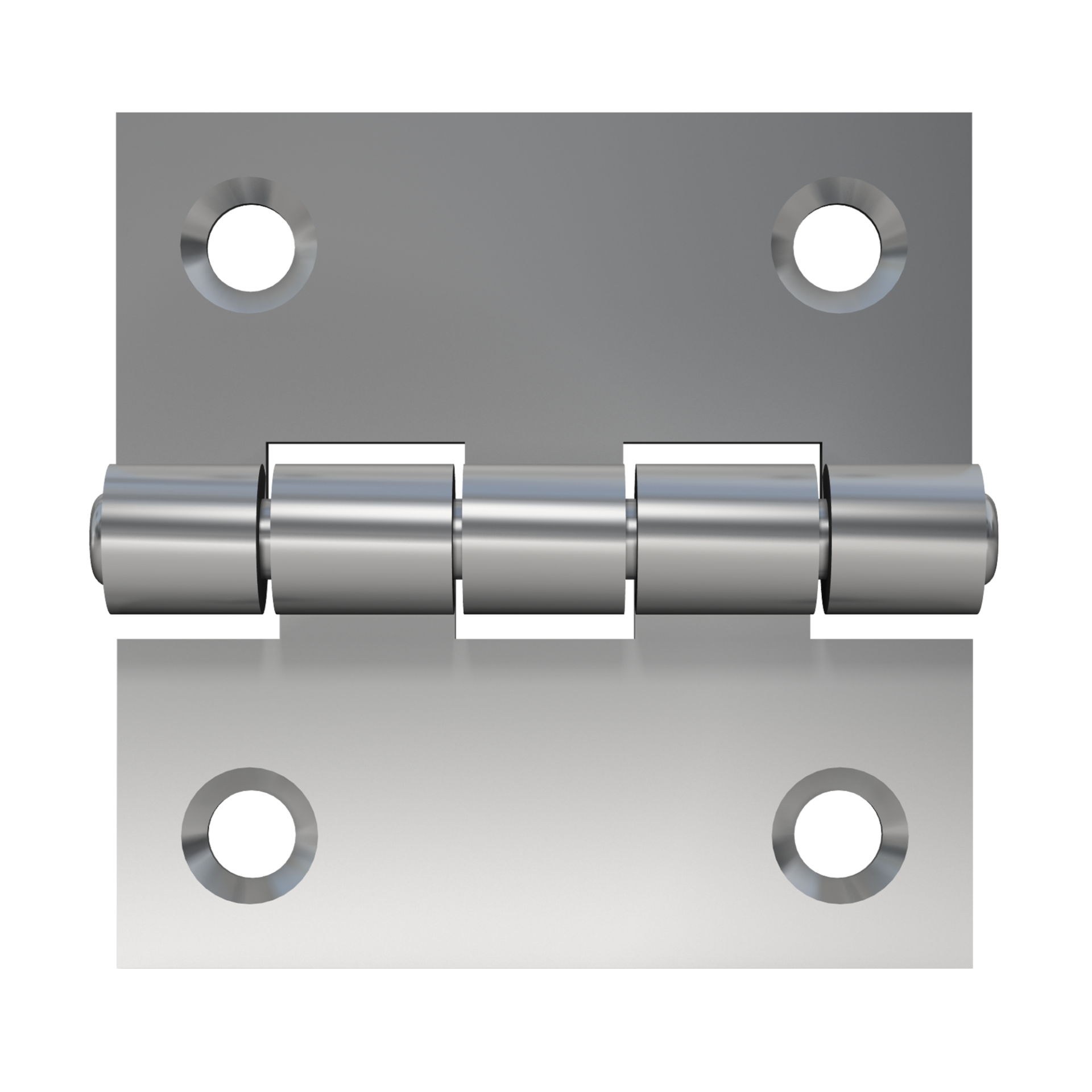

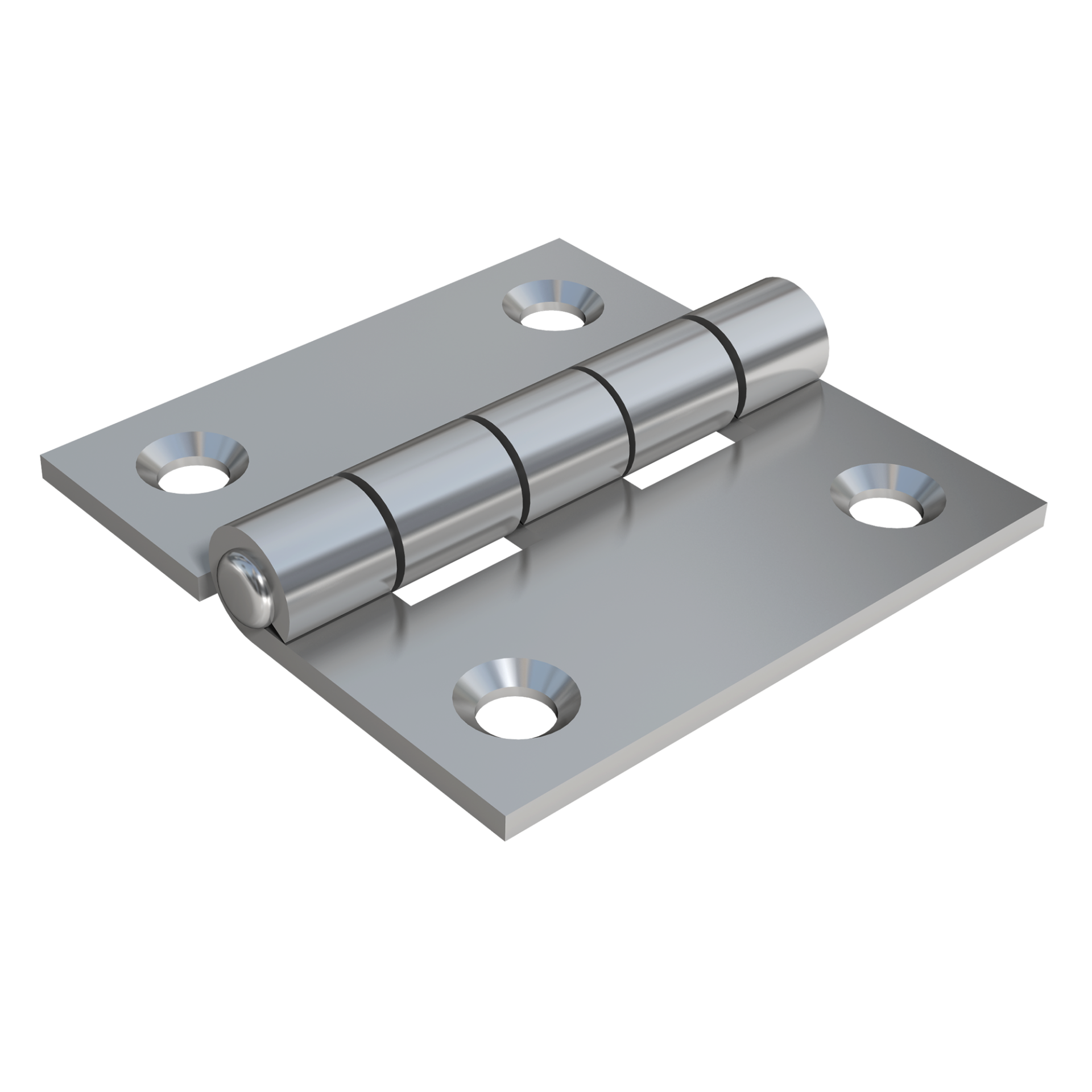

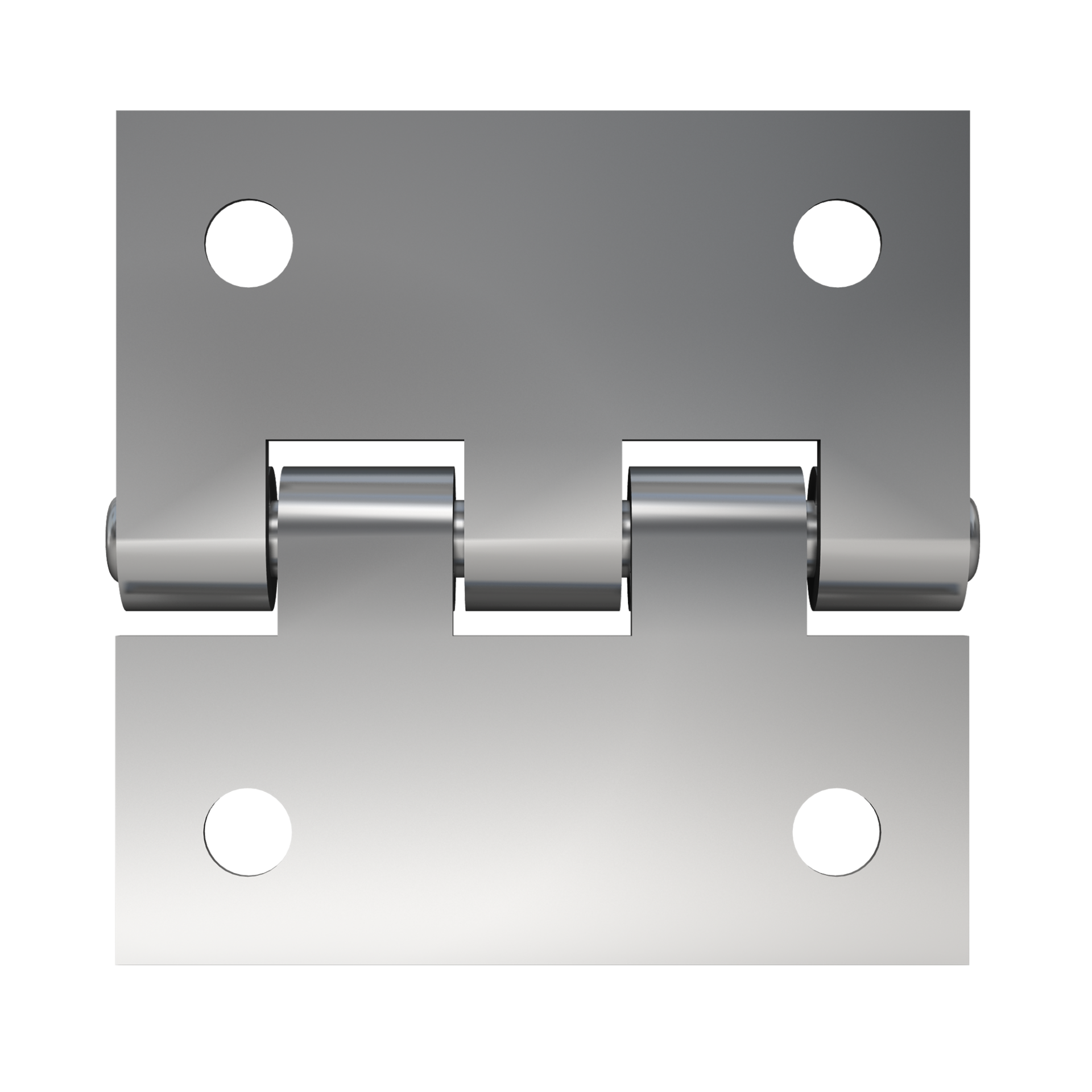

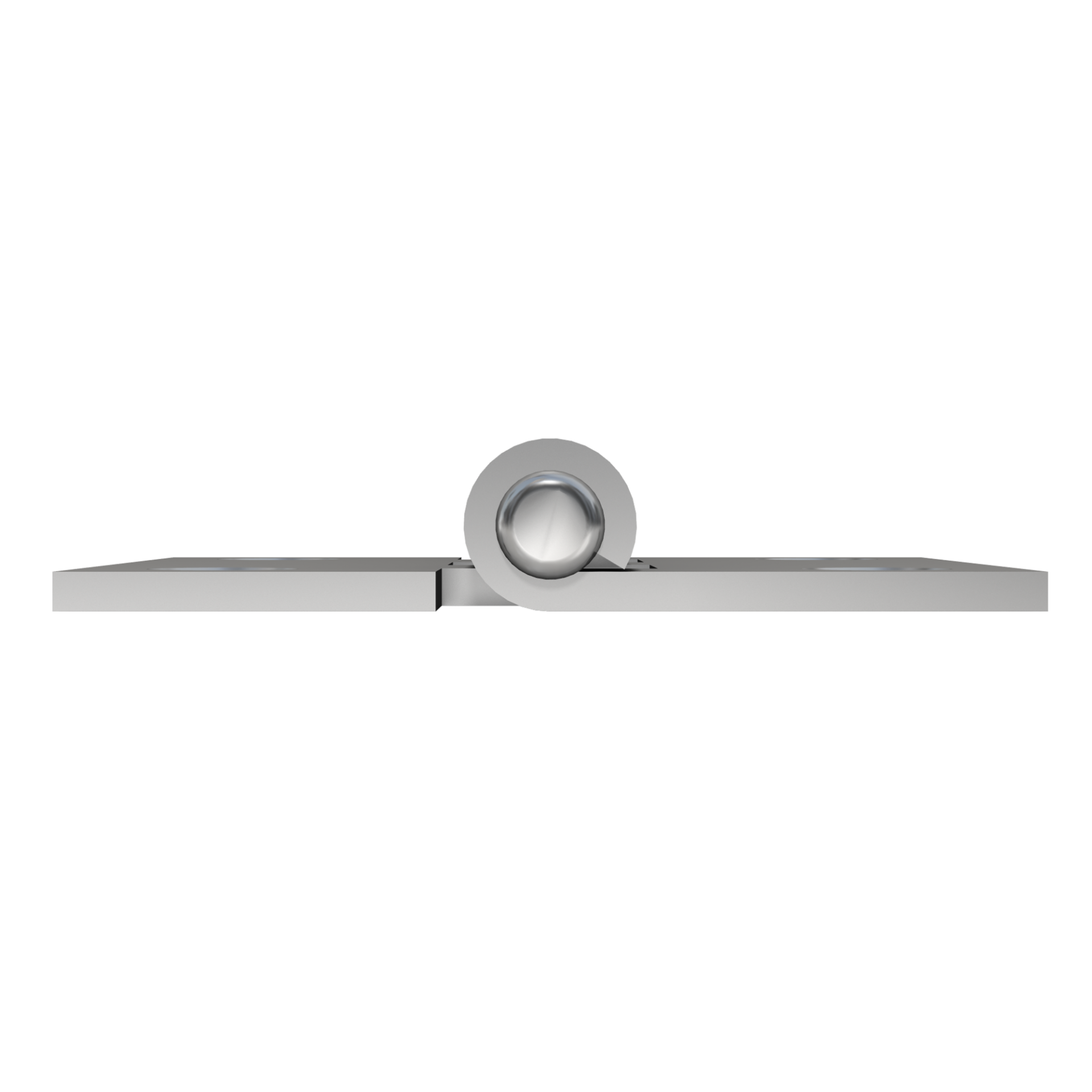

Paneloc’s butt hinges are available in a broad range of sizes, types and configurations to meet virtually any applications needs.

Our hinges feature a 5-knuckle configuration with a non-removable spun pin for added strength and security, and minimal side and end play.

Most hinges are stocked without holes or with two holes per leaf, and are readily available in steel or stainless steel. Common finishes include black oxide or zinc with clear or yellow chromate on steel; passivate or electropolish for stainless steel, and anodize on aluminum.

Custom piercing, trimming and removable pins can be requested to suit your needs.

butt-hinges

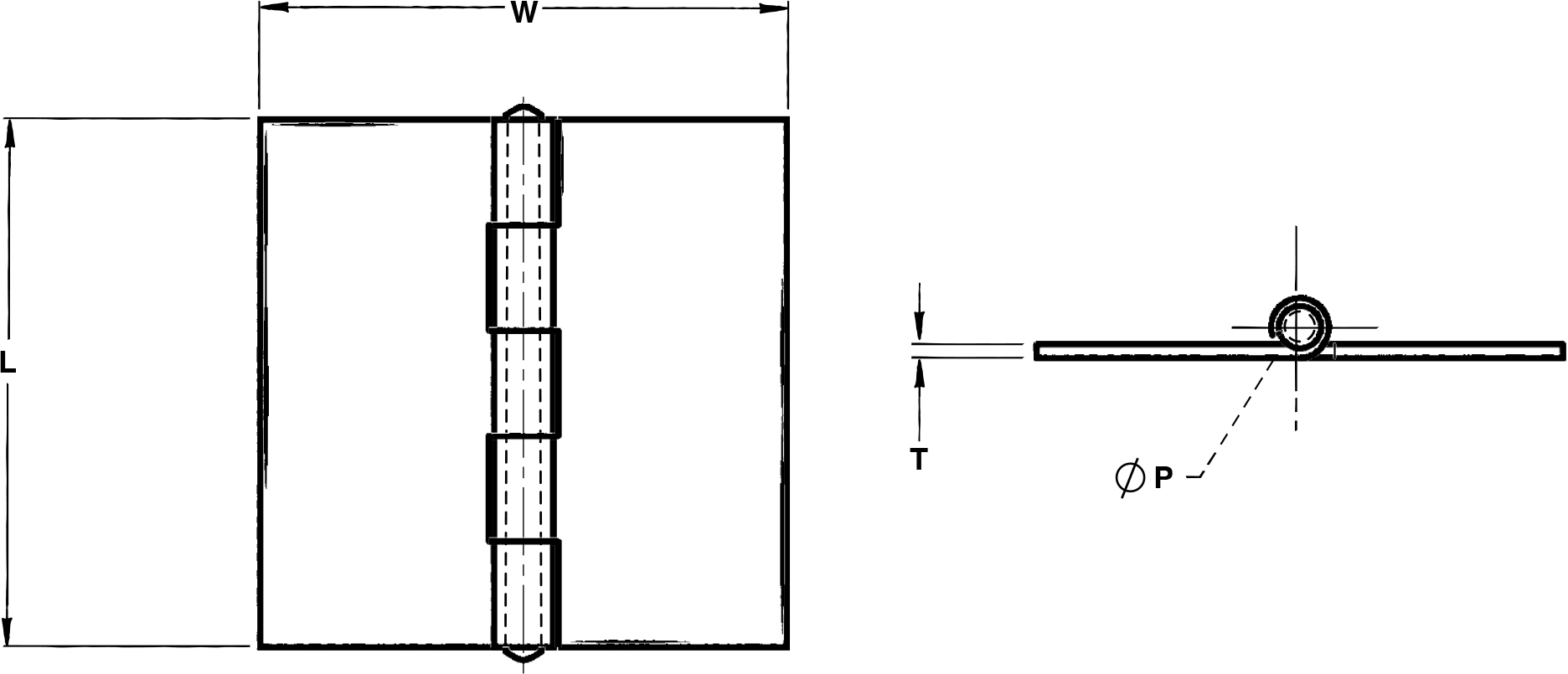

Butt Hinges
Thickness
.050 .060 .062 .070 .072 .080 .080 .080 .078 .093 .125 .125
Length
1.5 2.0 2.5 2.0 3.0 2.0 2.5 2.5 3.0 3.0 2.5 3.0
Width
1.5 2.0 2.5 1.5 2.0 2.0 2.5 2.5 3.0 3.0 2.5 3.0
Pin Diameter
.125 .125 .125 .156 .156 .187 .187 .250 .187 .250 .250 .250
Download PDF
CAD Drawing

*Having issues determining which file to download? Select the STEP file download dropdown.

Contact us today to find out how Paneloc products can help you!
