Spring Latches

Versatile Spring Latch Provides Secure Closure and Easy Access
The Spring Latch is reliable, low cost, used primarily on hinged doors and panels. The simple barrelbolt fastener has many practical applications throughout the electronic cabinet and industrial equipment industries. Smooth, trouble free action combined with easy access and secure closure make the Spring Latch ideal for inspection doors and access panels.
Spring Latch Features
Paneloc Spring Latches are fabricated from quality materials including stainless steel, cold rolled steel, and aluminum in a variety of finishes. They are available with optional widths, hole patterns, forms and pin styles. Easy and inexpensive installation can be accomplished using screws, rivets, or by welding.
The Spring Latch Difference
A unique design feature of Paneloc Spring Latches is a special C-Ring that acts as a positive-stop retainer, preventing spring over-travel or snagging. The C-Ring also provides secure pin retention and eliminates jamming. The tempered spring is properly tensioned to provide smooth positive pin release and return.

spring latch
SPRING LATCH PART NUMBERS
*Designated dimensions that can be altered to meet your specifications
PIN
P Pin Diameter
.125 .156 .187 .250 .187 SQ .250 .375 .250
* E Extension
.187 .250 .375 .500 .250 1.250 1.00 .625
* R1 Handle Length
.437 .625 .687 .812 .750 .810 1.50 .812
* R2 Handle Extension
.187 .250 .312 .375 .875 .380 1.50 .430
BODY
L Length
.875 1.378 2.000 2.75 .875 3.50 4.00 2.75
* W Width A
.375 .500 .625 .750 .500 .720 1.50 .955
Width B
.500 .750 .875 1.000 - - - -
T Thickness
.040 .040 .050 .060 .050 .060 .080 .090
* H1 Hole Location
.156 .187 .187 .250 .181 .281 .620 .400
* H2 Hole Location
.156 .187 .250 .250 .156 .750 .750 .375
* D Hole Diameter
.128(2H) .128(2H) .128(3H) .128(3H) .161(2H) .203(2H) .344(2H) .191(3H)
MATERIAL
Designation
Steel = S Stainless Steel = C Aluminum = A
Pin Type
12L14 303 SS
Body
1010 304 5052
Spring
302 302 302
C-Ring
PH15-7 MO PH15-7 MO PH15-7 MO

#715

2

Square Knuckle

& Square Pin

#716 – 90°

1

with 90° Form

MODEL

R = Right Hand

L = Left Hand

U = Unassembled

POINT STYLE
Other styles available including long extensions

11

1 90° Cone

12

2 Ball

13

3 Bullet

14

4 Flat

15

5 60° Cone

FINISH

Most commercial finishes are available including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum.

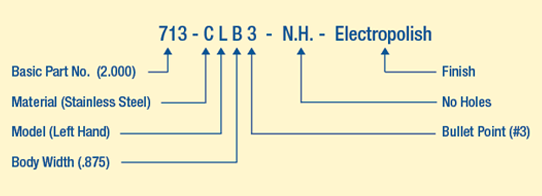

ORDERING INFORMATION

ordering information

Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
