Combining a hinge and a latch in a standard piece of hardware.
The 702 Series Spring Release Hinge has a single handle which pulls toward the center to release the body or door from the keeper. Installation is simple and inexpensive using screws, rivets or by welding. All styles are manufactured to close tolerances. End play and side play are held to a minimum, insuring a precision fit and smooth operation.
Series 702
BODY
| Standard | Special | ||
| L | Length | 1.75 | - |
| W | Width | 1.00 | - |
| T | Metal Thickness | .050 | - |
| DASH # | -1 | -7 |
PIN
| Pin Diameter | .250 | Special |
| DASH # | -1 | -7 |
HOLES
| None | Standard | Special | |
| DASH # | -0 | -1 | -7 |
MATERIAL
| Aluminum | Steel | Stainless | |
| DASH # | -0 | -1 | -7 |
MODEL
| Right | Left |
FINISH
| Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel, and anodize on aluminum. |

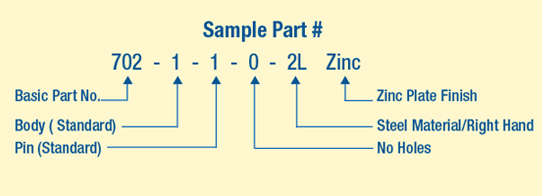

ORDERING INFORMATION
 |
