The Paneloc 787 Series Spring Latch features a 1/2″ pin with a holdback.
These large rugged latches feature a closed knuckle for added durability and strength making them well suited for truck and trailer bodies.
Series 787
PIN
| P | Pin Diameter | .500 |
| E* | Extension | 1.16 |
| R1 | Handle Extension | 1.00 |
| R2 | Handle Extension | 1.50 |
BODY
| L | Length | 2.00 |
| W | Width | 1.50 |
| T | Material Thickness | .125 |
| H | Height | .500 |
| BH | Body Height | .940 |
MATERIAL
| Readily available in plain steel, though it can also be purchased in stainless. |
FINISH
| Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel. |

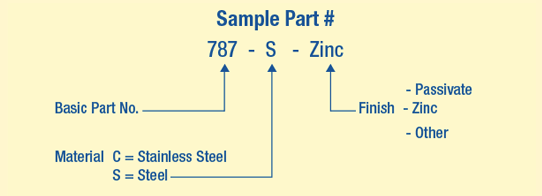

ORDERING INFORMATION
 |
