Series 708

Description
Images
Diagram
709S1_000

These rugged slam latches are ideal for applications that require a quick and effortless locking mechanism, such as truck and trailer doors, drawers and tailgates, as well as medical and farm equipment.

To engage simply “slam” the door shut. The spring-loaded pin is square with an angled edge that smoothly retracts as it engages with the keeper and then extends back into place in a locked position. To release, grip the handle and pull back.

Available in 3 sizes: 7/16″, 3/8″ and 1/2″ pins

Standard Version With Cover shown to the left

Special forms, offsets, hole sizes or welding projections are available to your specifications.
*Designates dimensions that can be altered to meet your specifications.

707_709-diagram-1

Series 708

PIN
PPin Size.437
*EExtension.750
R1Handle Length1.000
R3Handle Extension1.250
BODY
LLength2.000
*(WWidth1.625
T1Thickness.125
T2Thickness.120
*H1Hole Location.250
*H2Hole Location.375
H3Hole Location1.250
H4Hole Location1.125
*DHole Diameter.203
MATERIAL
C = Stainless
S = Steel
FINISH
Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel.

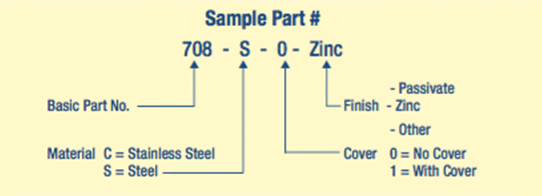

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
