Series 712

Description
Images
Diagram
714_000

The Spring Latch Difference

Paneloc’s spring-loaded latches are a reliable, high quality solution for applications where both secure closure and easy access are required. Primarily used on hinged doors and panels, the simple barrel bolt design has many practical uses throughout the electronic cabinet and industrial equipment industries, including inspection doors and
access panels.

Paneloc offers an extensive selection of high quality materials, widths, hole patterns, forms and pin styles to choose from. Easy and inexpensive installation can be accomplished using screws, rivets, or by welding. A unique design feature of Paneloc’s latches is a special C-Ring that acts as a positive-stop retainer, preventing spring over-travel or snagging. The C-Ring also provides secure pin retention and eliminates jamming. The tempered spring is properly tensioned to provide smooth positive pin release and return.

*Designates dimensions that can be altered to meet your specifications.

711-718-diagram

Series 712

PIN
PPin Diameter.156
*EExtension.250
*R1Handle Length.625
*R2Handle Extension.250
BODY
LLength1.375
*WWidth A.500
Width B.750
TThickness.040
*H1Hole Location.187
*H2Hole Location.187
*DHole Diameter.128(2H)
MATERIAL
SteelStainlessAluminum
DesignationSCA
Pin Type1215303SS
Body10103045052
Spring302302302
C-RingPH15-7 MOPH15-7 MOPH15-7 MO
MODEL
R = Right Handed
L = Left Handed
U = Unassembled
POINT STYLE
Other styles available including long extensions 1

90º Cone
2

Ball
3

Bullet
4

Flat
5

60º Cone
FINISH
Most commercial finishes are available including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum.

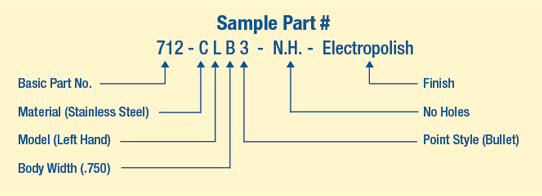

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
