Series 713

Description
Images
Diagram
714_000

The Spring Latch Difference

Paneloc’s spring-loaded latches are a reliable, high quality solution for applications where both secure closure and easy access are required. Primarily used on hinged doors and panels, the simple barrel bolt design has many practical uses throughout the electronic cabinet and industrial equipment industries, including inspection doors and
access panels.

Paneloc offers an extensive selection of high quality materials, widths, hole patterns, forms and pin styles to choose from. Easy and inexpensive installation can be accomplished using screws, rivets, or by welding. A unique design feature of Paneloc’s latches is a special C-Ring that acts as a positive-stop retainer, preventing spring over-travel or snagging. The C-Ring also provides secure pin retention and eliminates jamming. The tempered spring is properly tensioned to provide smooth positive pin release and return.

*Designates dimensions that can be altered to meet your specifications.

711-718-diagram

Series 713

PIN
PPin Diameter.187
*EExtension.375
*R1Handle Length.687
*R2Handle Extension.312
BODY
LLength2.000
*WWidth A.625
Width B.875
TThickness.050
*H1Hole Location.187
*H2Hole Location.250
*DHole Diameter.128(3H)
MATERIAL
SteelStainlessAluminum
DesignationSCA
Pin Type1215303SS
Body10103045052
Spring302302302
C-RingPH15-7 MOPH15-7 MOPH15-7 MO
MODEL
R = Right Handed
L = Left Handed
U = Unassembled
POINT STYLES
Other styles available including long extensions 1

90º Cone
2

Ball
3

Bullet
4

Flat
4

Flat
FINISH
Most commercial finishes are available including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum.

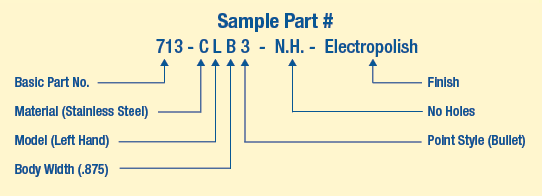

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!


Contact us today to find out how Paneloc products can help you!
