Series 716

Description
Images
Diagram
_0000s_0003_716_000

In addition to the standard version, the Series 716 Spring Latch can be ordered with a special feature that differentiates it from our other latches—an additional 90 degree form on the body.

This unique design elevates the pin so that it’s no longer flush to the body, making it an ideal choice for installations in hard-to-reach locations, such as inset windows, doors and recessed panels.

Custom hole patterns or body heights can be requested to suit your needs.

*Designates dimensions that can be altered to meet your specifications.

716-diagram

Series 716

PIN
PPin Diameter.250
*EExtension1.250
*R1Handle Length.810
BODY
LLength3.50
*WWidth A (Height).720
Width B-
OBase Width.950
TThickness.060
*H1Hole Location.310
*H2Hole Location.750
H3Hole Location2.00
*DHole Diameter.203
MATERIAL
SteelStainlessAluminum
DesignationSCA
Pin Type12L14303SS
Body10103045052
Spring302302302
C-RingPH15-7MOPH15-7MOPH15-7MO
MODEL
R = Right Handed
L = Left Handed
U = Unassembled
POINT STYLE
Other styles available including long extensions 1

90º Cone
2

Ball
3

Bullet
4

Flat
5

60º Cone
FINISH
Most commercial finishes are available, including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum.

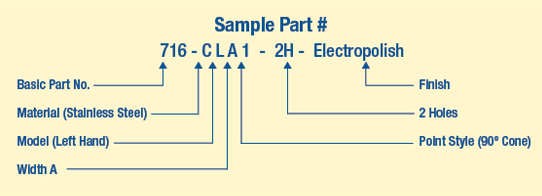

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!


Contact us today to find out how Paneloc products can help you!
