The Spring Latch Difference
Paneloc’s spring-loaded latches are a reliable, high quality solution for applications where both secure closure and easy access are required. Primarily used on hinged doors and panels, the simple barrel bolt design has many practical uses throughout the electronic cabinet and industrial equipment industries, including inspection doors and
access panels.
Paneloc offers an extensive selection of high quality materials, widths, hole patterns, forms and pin styles to choose from. Easy and inexpensive installation can be accomplished using screws, rivets, or by welding. A unique design feature of Paneloc’s latches is a special C-Ring that acts as a positive-stop retainer, preventing spring over-travel or snagging. The C-Ring also provides secure pin retention and eliminates jamming. The tempered spring is properly tensioned to provide smooth positive pin release and return.
*Designates dimensions that can be altered to meet your specifications.
Series 718
| P | Pin Diameter | .375 |
| *E | Extension | 1.00 |
| *R1 | Handle Length | 1.50 |
| *R2 | Handle Extension | 1.50 |
| L | Length | 4.00 |
| *W | Width | 1.50 |
| T | Thickness | .080 |
| *H1 | Hole Location | .620 |
| *H2 | Hole Location | .750 |
| *D | Hole Diameter | .344(2H) |
| Steel | Stainless | Aluminum | |
| Designation | S | C | A |
| Pin Type | 1215 | 303 | SS |
| Body | 1010 | 304 | 5052 |
| Spring | 302 | 302 | 302 |
| C-Ring | PH15-7 MO | PH15-7 MO | PH15-7 MO |
| *All springs and c-rings are made with stainless steel. |
| R = Right Handed |
| L = Left handed |
| U = Unassembled |

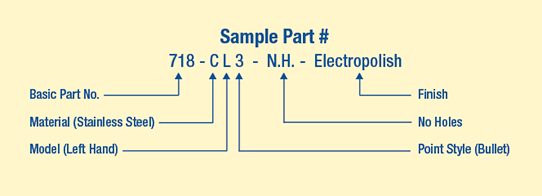

| Other styles available including long extensions | 1.  | 2.  | 3.  | 4.  | 5.  |
| 90º Cone | Ball | Bullet | Flat | 60º Cone |
| Most commercial finishes are available including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum. |
 |
