Series 719

Description
Images
Gallery
719000

The Paneloc heavy-duty 719–720 Series spring latches are available in 3/8″ and 1/2″ pin diameters, respectively. These large, rugged latches are available in steel or stainless steel and have a closed knuckle for added durability and strength. They are ideally suited for truck bodies, utility vehicles, horse trailers and more. The offset body design provides more flexibility with placement on tight applications.

707_709-diagram-1

Series 719

PIN
PPin Diameter.375
*EExtension1.250
R1Handle Extension1.187
R2Handle Extension.687
BODY
LLength2.000
WWidth.656
BHeight1.12
TThickness.125
H1Hole Location.375
H2Hole Location.437
H3Hole Location1.125
*DHole Diameter.265
MATERIAL
Designation
C = Stainless
S = Steel
MODEL
R = Right Hand
L = Left Hand
U = Unassembled
FINISH
Most commercial finishes are available, including zinc plate on steel, passivate and electropolishing on stainless steel.

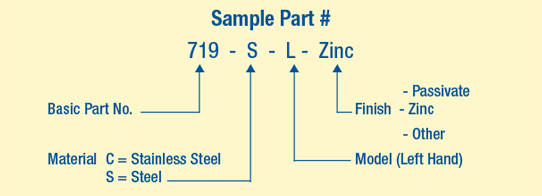

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
