Series 723

Description
Images
Diagram
714_000
711-718-diagram

Series 723

PIN
PPin Diameter.250
*EExtension.625
*R1Handle Length.812
*R2Handle Extension.430
BODY
LLength2.75
*WWidth A.955
Width B-
TThickness.090
*H1Hole Location.400
*H2Hole Location.375
*DHole Diameter.191(3H)
MATERIAL
SteelStainlessAluminum
DesignationSCA
Pin Type1215303SS
Body10103045052
Spring302302302
C-RingPH15-7 MOPH15-7 MOPH15-7 MO
MODEL
R = Right Handed
L = Left Handed
U = Unassembled
POINT STYLE
Other styles available including long extensions 1

90º Cone
2

Ball
3

Bullet
4

Flat
5

60º Cone
FINISH
Most commercial finishes are available including zinc plate on steel, passivate and electropolishing on stainless steel, and anodize on aluminum.

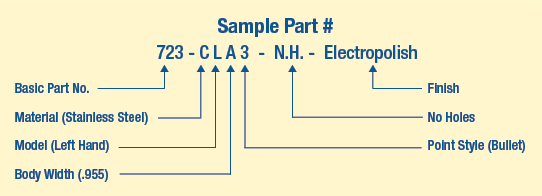

ORDERING INFORMATION
Download PDF View CAD Drawing

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
