Series 784

Description
Images
Diagram
784_000

The 784 Series Spring Latch is one of the strongest, most heavy-duty latches in Paneloc’s product line, with a 3/4″ pin and closed knuckle for added durability and strength.

This part is available with a cable-ready pin or handle. The 784 is available with two holes, pem studs
or in a no-hole version for welding. It is ideally suited for truck and trailer bodies and railcars.

24-PANE-2041-PRODUCT-DIAGRAM-784

Series 784

PIN
PPin Diameter.750
*EExtension1.56
R2Handle Extension1.87
DHHandle Hole.437
BODY
WWidth1.50
BHBody Height1.75
LLength3.00
HHeight1.00
TMaterial Thickness.187
MATERIAL
Steel
FINISH
Available in plain steel, or with zinc plating.

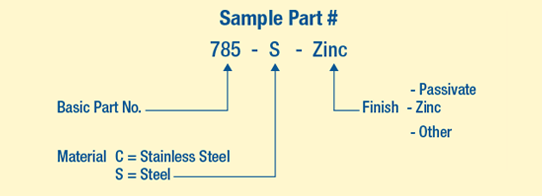

ORDERING INFORMATION
Download PDF View CAD Drawing

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
