The 788 Series Spring Latch is the strongest, most rugged latch in Paneloc’s product line, with a 3/4″ diameter pin, easy-to-grip handle and closed knuckle for added durability and strength.
The body includes four mounting holes for secure installation. This part is ideally suited for heavy‑duty use on trucks, railcars, and trailer bodies.

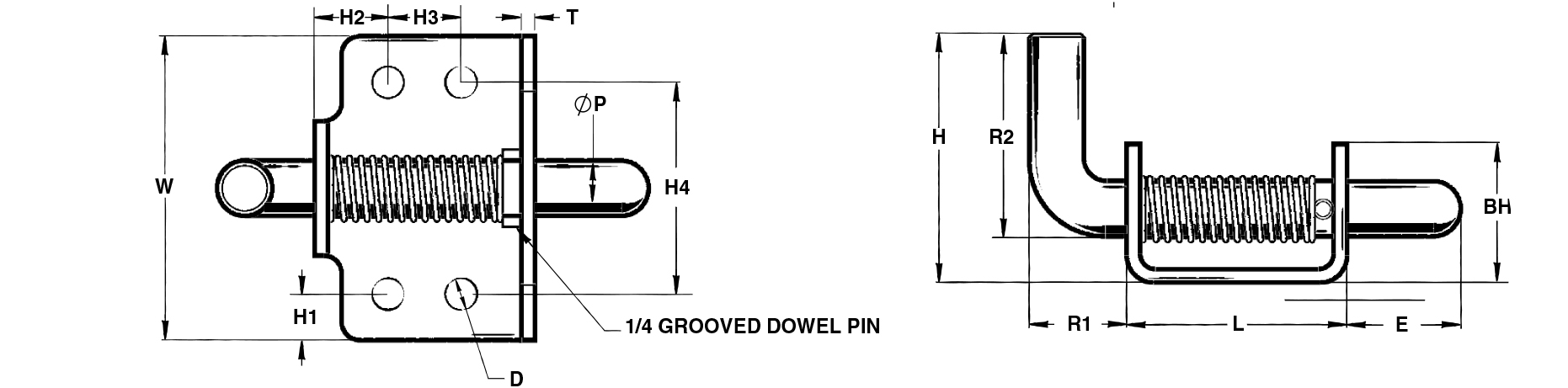

*Designates dimensions that can be altered to meet your specifications.
Special forms, hole locations and sizes or welding projections are available to your specifications.
Series 788
PIN
| P | Pin Diameter | .750 |
| *E | Extension | 1.562 |
| R1 | Handle Extension | 1.312 |
| R2 | Handle Extension | 2.750 |
BODY
| L | Length | 3.000 |
| W | Width | 4.125 |
| T | Material Thickness | .187 |
| H | Height | 3.375 |
| BH | Body Height | 1.875 |
| H1 | Hole Location | .621 |
| H2 | Hole Location | 1.00 |
| H3 | Hole Location | 1.00 |
| H4 | Hole Location 4 | 2.875 |
| D | Hole Diameter | .437 |
MATERIAL
| Designation |
| S = Steel |
FINISH
| Available in plain steel, or with zinc plating. |

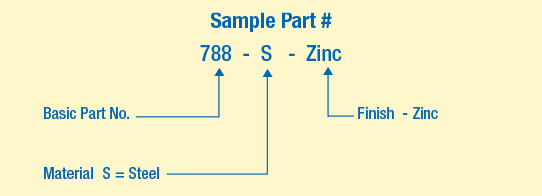

ORDERING INFORMATION
 |
