Series 789

Description
Images
Diagram
_0000s_0007_789_000

The Paneloc 789 Series Spring Latch features a 1/2″ pin with a holdback.

These large rugged latches feature a closed knuckle for added durability and strength, making them well- suited for truck and trailer bodies.

*Designates dimensions that can be altered to meet your specifications.

  Special forms, hole sizes or welding projections are available to your specifications.

Series-789-diagram

Series 789

PIN
PPin Diameter.500
*EExtension1.50
R1Handle Extension.870
R2Handle Extension1.68
BODY
LLength3.12
WWidth1.50
TMaterial Thickness.187
HHeight.750
BHBody Height1.25
H2Hole Location.690
H3Hole Location1.75
H4Hole Location1.00
*DHole Diameter.250
MATERIAL
Readily available in plain steel with zinc plating, though it can also be purchased in stainless.
FINISH
Most commercial finishes are available, including zinc on steel, passivate and electropolishing on stainless steel.

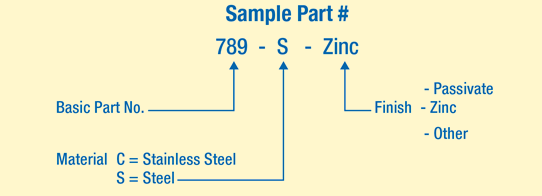

ORDERING INFORMATION
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
