Lock Latch

Description
Images
Diagram
779_000

The Paneloc 779 Series Spring Latch features a 1/2″ pin diameter and a closed knuckle for added durability and strength.

A unique feature of this part is it’s cover plate which enables the latch to lock open or lock closed.

Series-779-diagram

Lock Latch

PIN
PPin Diameter.500
*EExtension1.312
BODY
*LLength2.88
WWidth2.00
T1Thickness.120
T2Thickness.140
R1Handle Length2.25
R2Handle Extension1.38
HHeight.375
H1Hole Location.310
H2Hole Location.450
H3Hole Location1.937
H4Hole Location1.380
*DHole Diameter.270
C = Stainless
S = Steel
FINISH
Most commercial finishes are available, including zinc plate on steel, and passivate or electropolishing on stainless steel.

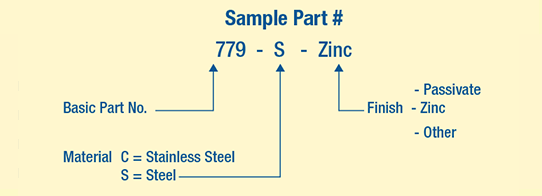

ORDERING INFORMATION
701-ordering-info
Download PDF

If you require a CAD Drawing, please reach out to us using the form provided below. Thank you!
